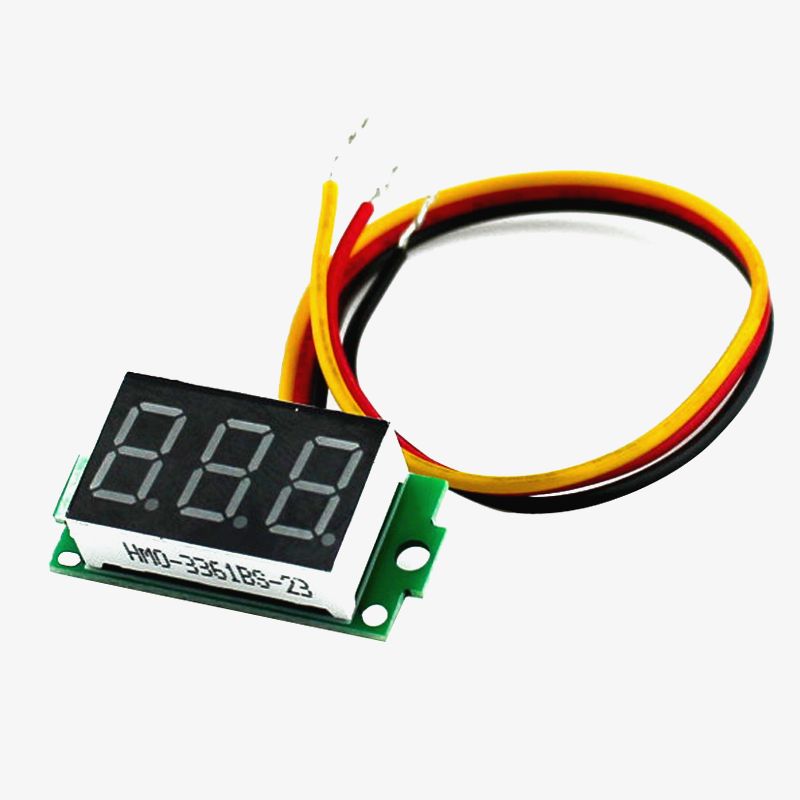

0.36inch 0-100V Three Wire LED Display Digital DC Voltmeter-RED

Overview:

• Type: Digital Voltmeter
• Display: 0.36-inch Red LED
• Operating Range: 4.5V to 30V DC (Maximum Voltage: 30V DC)
• Measurement Range: 0V to 100V DC
• Connection Type: 3-Wire System

Key Features:

1. Easy Setup:
   • Red Wire: Positive power supply terminal.
   • Black Wire: Negative power supply and measurement voltage source terminal.
   • Yellow/White/Blue Wire: Positive terminal of the measurement voltage source.
2. Automatic Decimal Adjustment:
   • Two decimal places below 10V.
   • One decimal place above 10V.
3. Reverse Polarity Protection: Prevents circuit damage from incorrect wire connections.
4. Compact and Lightweight: User-friendly design, ideal for quick and portable applications.
5. Durable LED Display: Bright, clear digits with matt-finish glass for improved visibility.

Applications:

• Automotive: Battery voltage monitoring for motorcycles and cars.
• DIY Projects: Ideal for DC voltage measurements in electronics projects.
• General Use: Testing power supplies and battery conditions.

Important Notes:

• A voltage drop of ~1V may occur due to internal circuitry—consider this during measurements.
• Avoid exceeding the 30V DC limit to prevent damage from electrical surges.
• Product design (e.g., wire colors or PCB layout) may vary with updates.

This versatile voltmeter is perfect for measuring and monitoring DC voltages in a range of applications.
