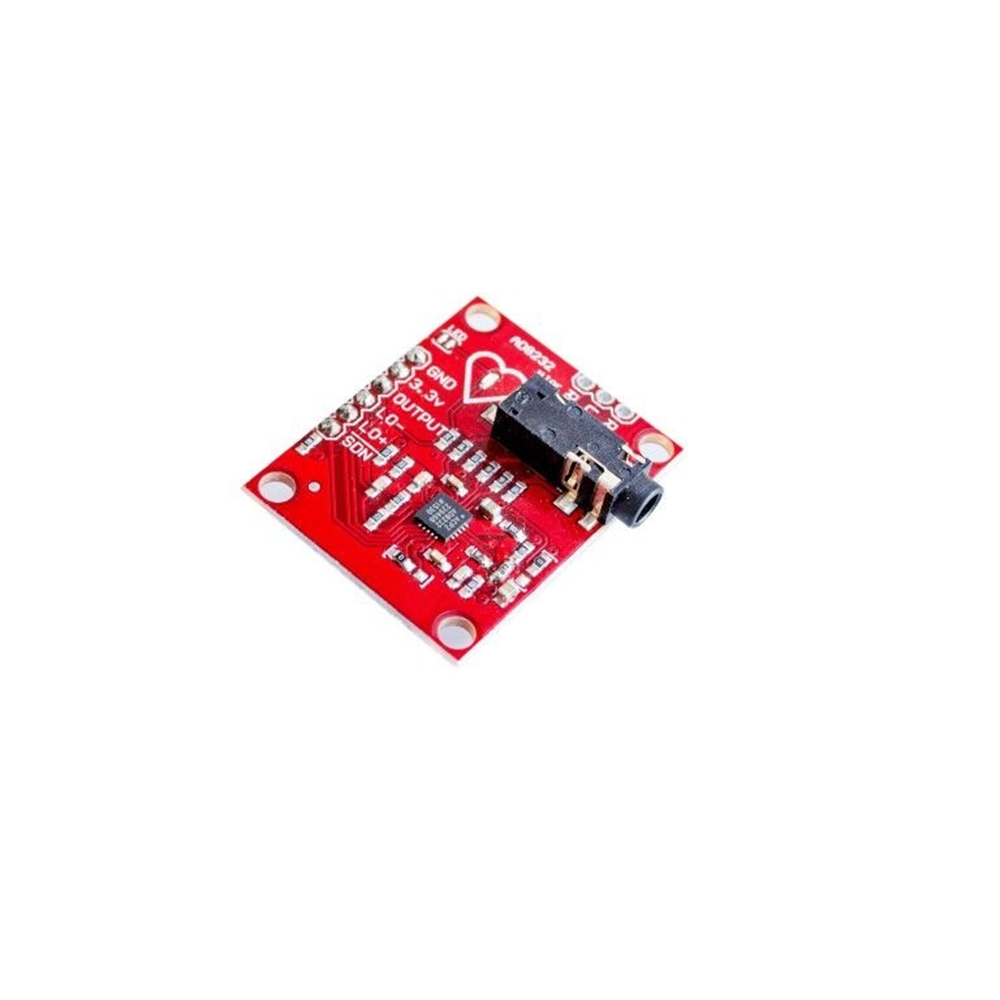

ECG Module AD8232 Heart ECG Monitoring Sensor Kit for Arduino

The AD8232 ECG Module Kit is a compact and cost-effective heart rate monitoring solution designed for biomedical and fitness applications. It detects electrical activity of the heart, outputs it as an analog signal, and can be used with Arduino and other microcontrollers to visualize ECG waveforms.

At its core, the AD8232 chip includes a precision operational amplifier, which helps extract clean PR and QT interval signals, reducing noise caused by motion or poor electrode placement. This makes the module highly reliable for detecting heart rate and monitoring cardiac activity.

The LED indicator on the board pulses in synchronization with the heartbeat, providing a real-time visual signal of heart rhythm. With its simple interface, the module allows easy integration into DIY health monitors, remote patient tracking, and fitness applications.

Key Features

✅ High-Sensitivity ECG Monitoring – Accurately detects heart rate and electrical activity
✅ Integrated Noise Filtering – Filters weak bio-signals and reduces noise from movement or electrode placement
✅ Analog Signal Output – Can be connected to Arduino, Raspberry Pi, or any microcontroller
✅ Leads-Off Detection – Notifies when the electrodes are improperly placed or disconnected
✅ LED Heartbeat Indicator – Blinks synchronously with heart rate for a visual representation
✅ Compact & Lightweight – Small 36mm × 30mm board ideal for wearable projects
✅ Single-Lead ECG Measurement – Uses Right Arm (RA), Left Arm (LA), and Right Leg (RL) electrodes
✅ 3.5mm Jack for Biomedical Pads – Easily connect standard ECG electrodes

Applications

✔ Fitness & Exercise Heart Rate Monitoring – Track heart rate during workouts
✔ Portable ECG Devices – Compact design for mobile health applications
✔ Remote Health Monitoring – Ideal for telemedicine and elderly care
✔ Gaming Peripherals – Used in biofeedback-based games
✔ Biological Signal Acquisition – Captures biomedical signals for research and DIY projects

⚠ Note: This module is not a medical device and should not be used for diagnosing or treating medical conditions.

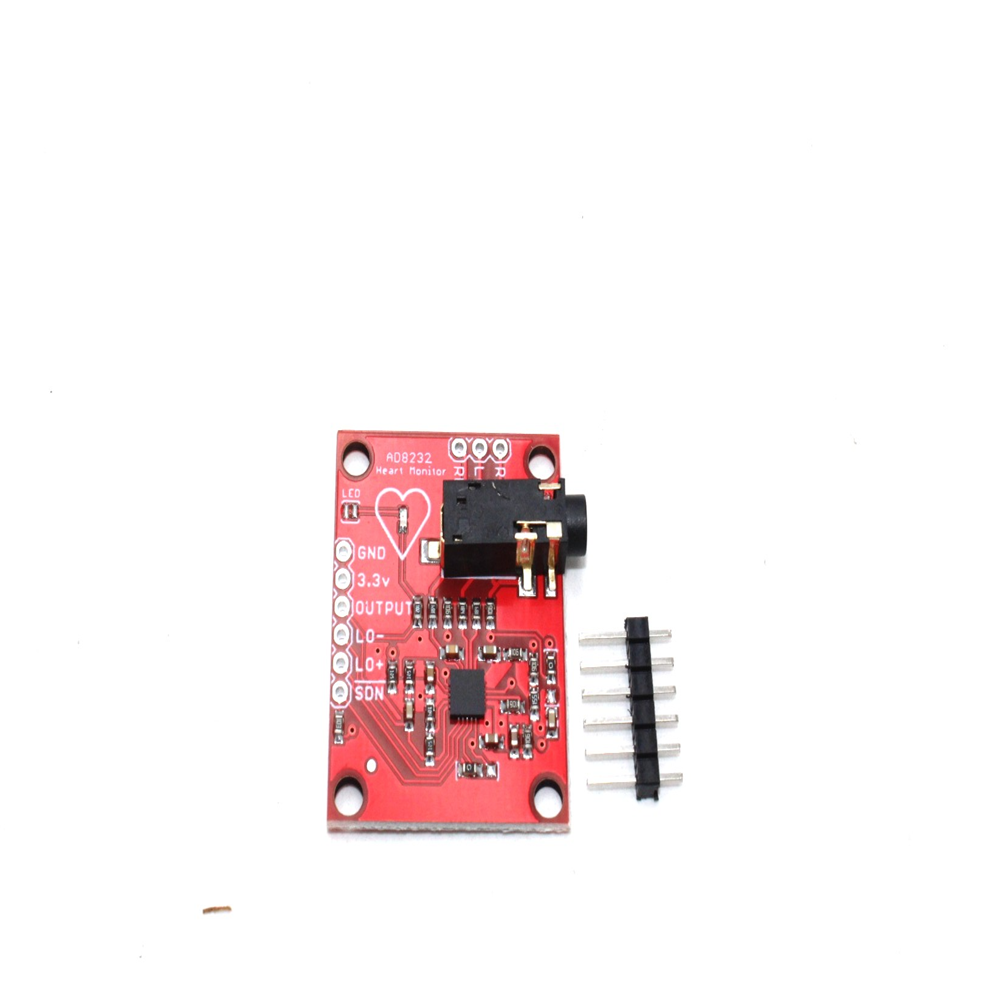

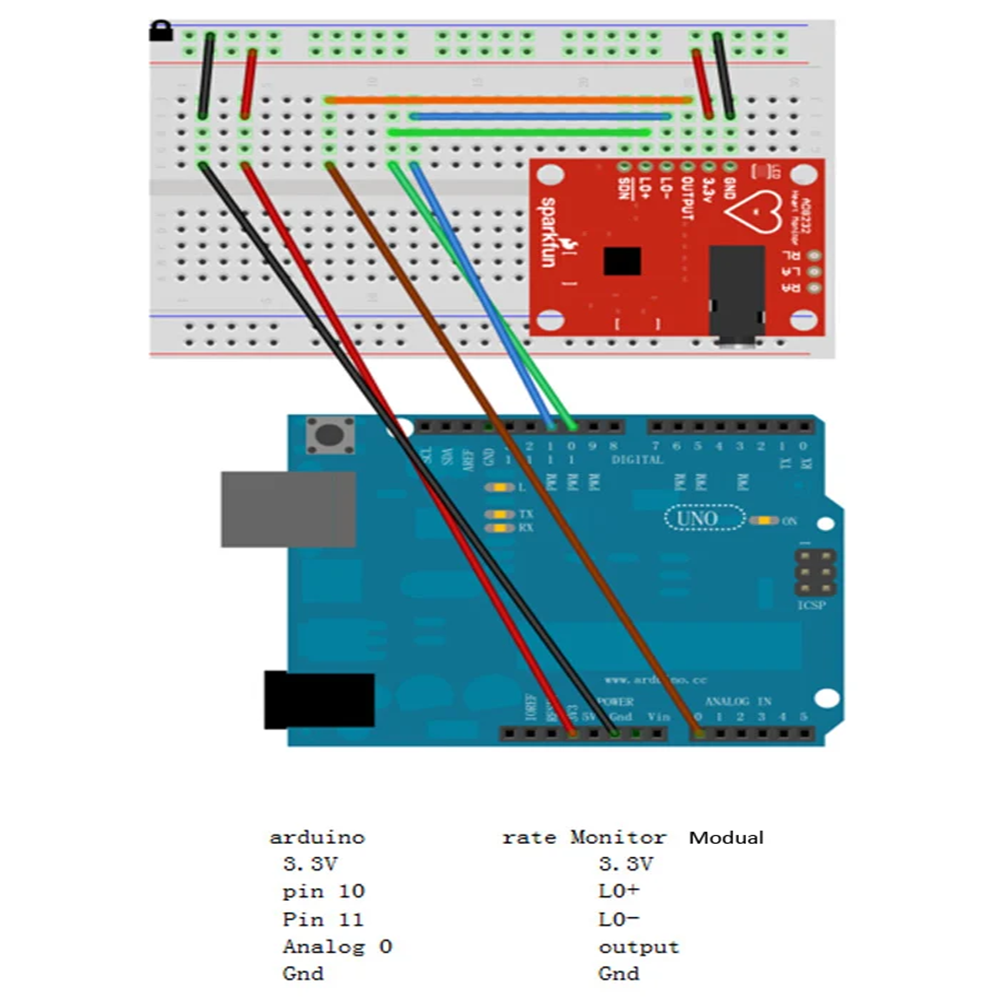

Pin Connections

• SDN (Shutdown Pin): Used to turn the module on/off
• LO+ / LO- (Leads-Off Detection): Detects electrode disconnection
• OUTPUT: Provides analog ECG signal
• 3.3V: Power input
• GND: Ground
• RA / LA / RL: Connects to Right Arm, Left Arm, and Right Leg electrodes

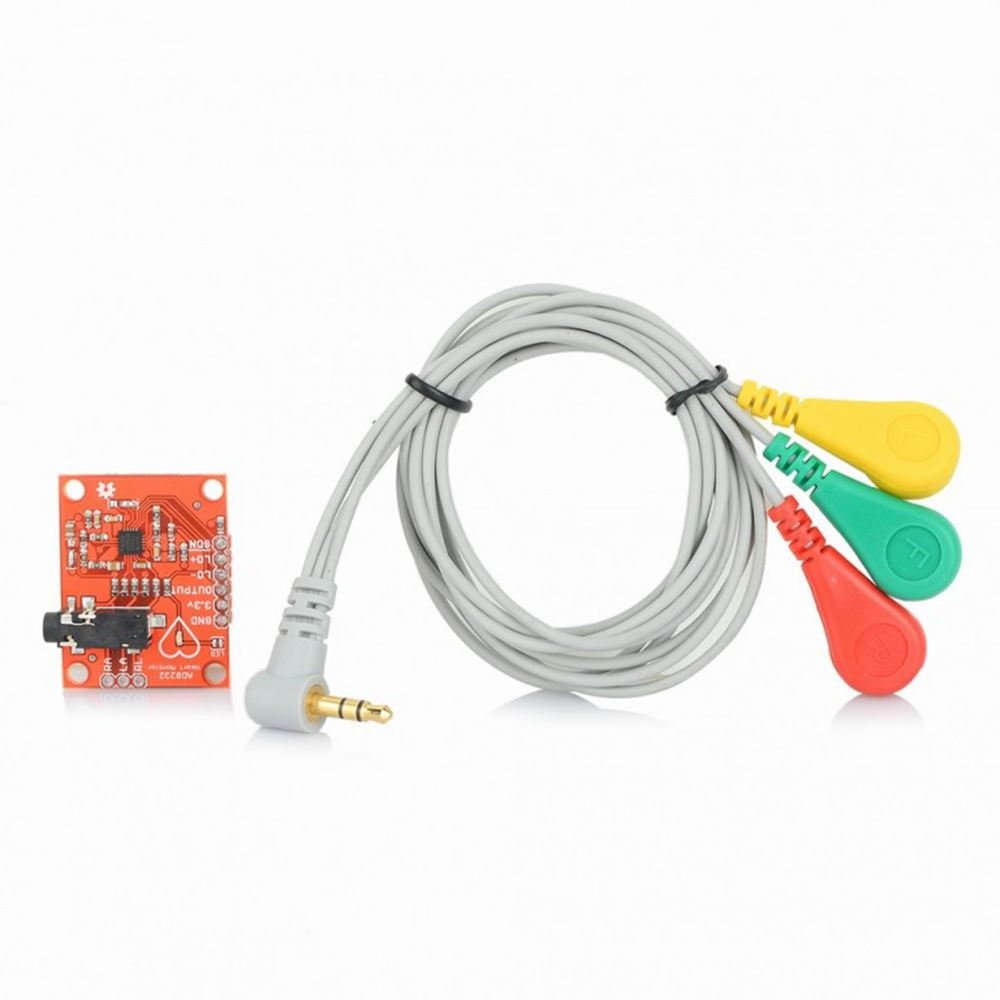

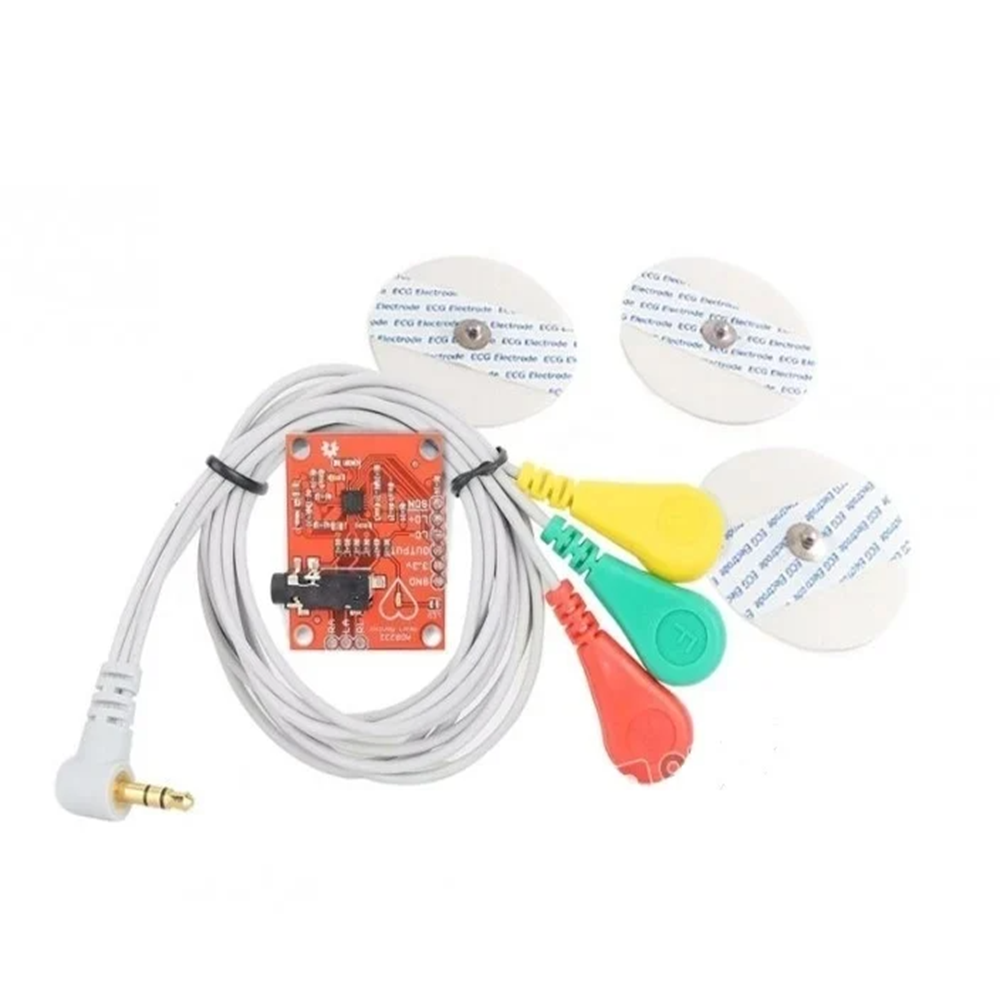

Package Includes

✔ 1 x AD8232 ECG Monitoring Sensor Module

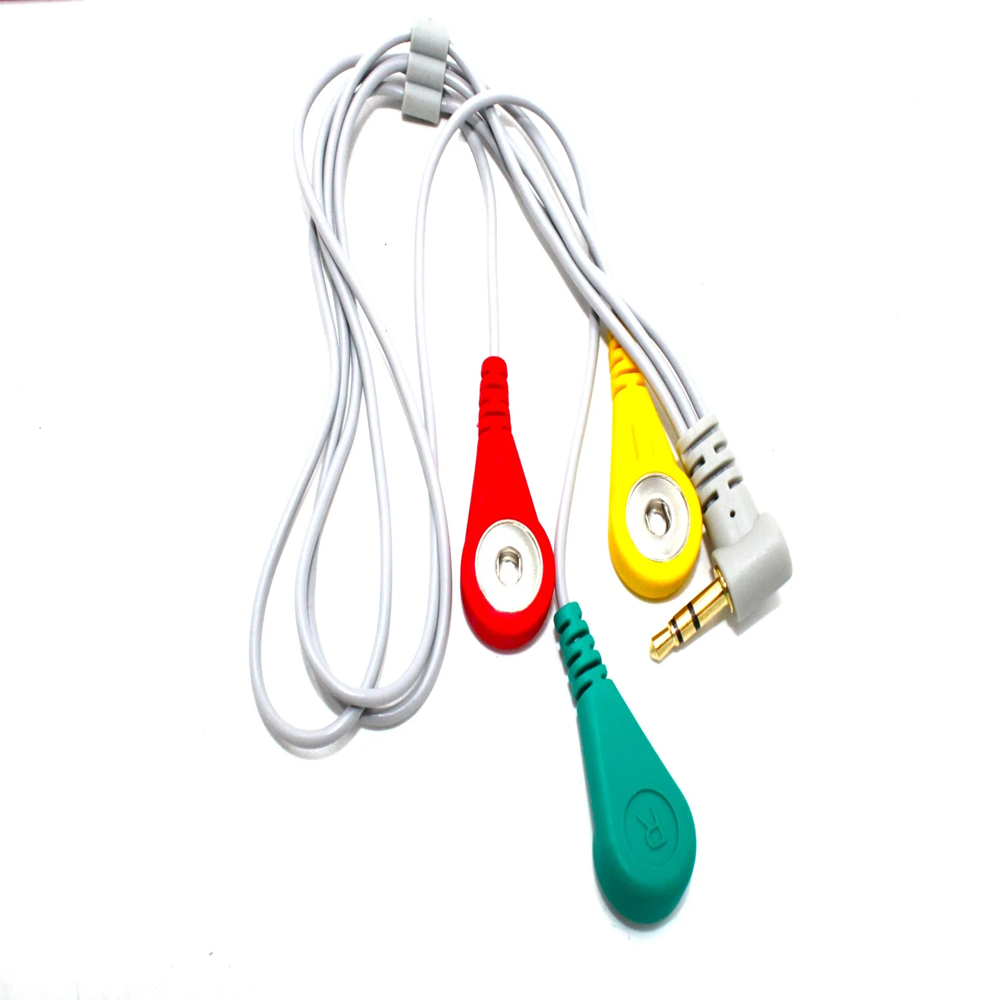

✔ 1 x Sensor Cable (50 cm)
✔ 3 x Electrode Pads

This AD8232 ECG Module Kit is the perfect choice for DIY health monitoring projects, Arduino-based experiments, and wearable ECG devices.
