Flex Sensor 2.2″ – Bend Sensor for Hand Gesture Recognition

280 +Tax and Shipping.

24 people are viewing this right now
13 products sold in last 3 hours
Selling fast! 1 person has this in their cart

Specifications

Parameter Details
Total Length 7.5 cm
Active Sensor Length 55 mm
Life Cycle > 1 million bends
Height 0.43 mm (0.017″)
Flat Resistance 10K Ohms ±30%
Bend Resistance Min. 20K Ohms ±30% (@ 180° pinch bend)
Power Rating 0.5W continuous, 1W peak
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

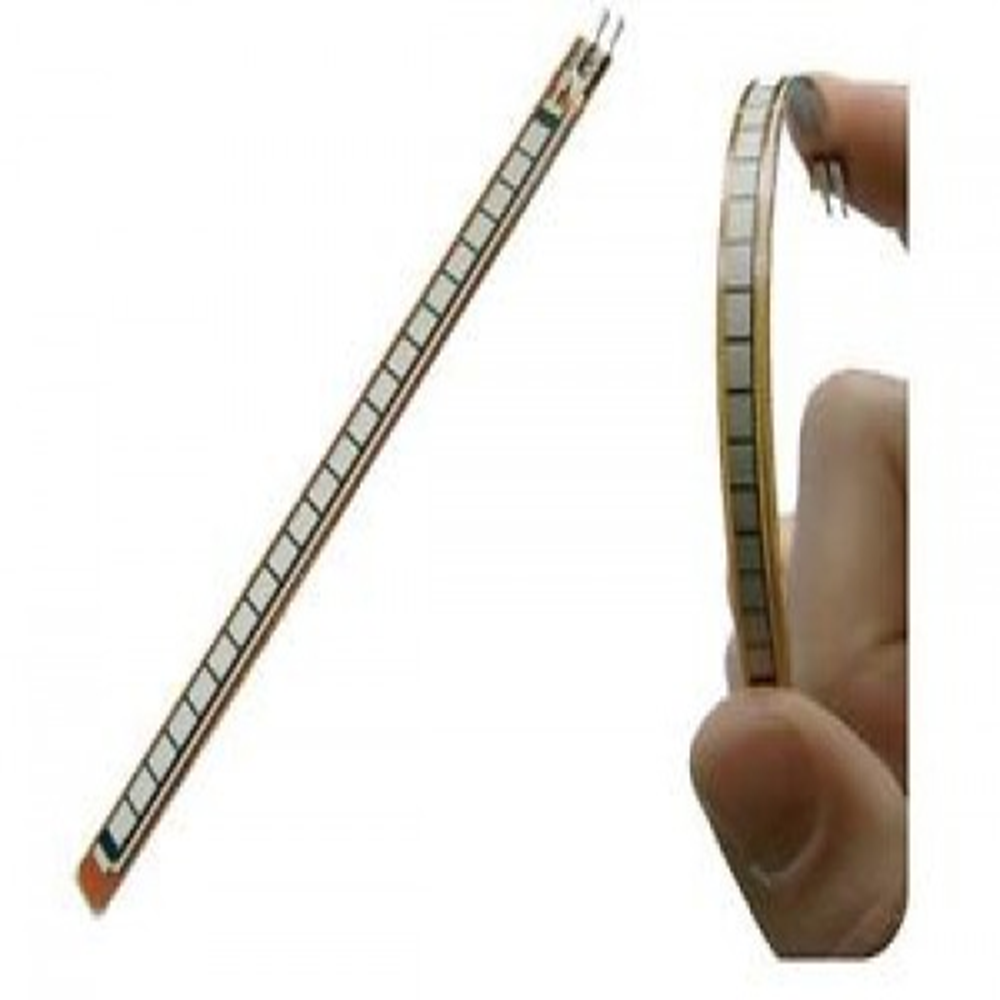

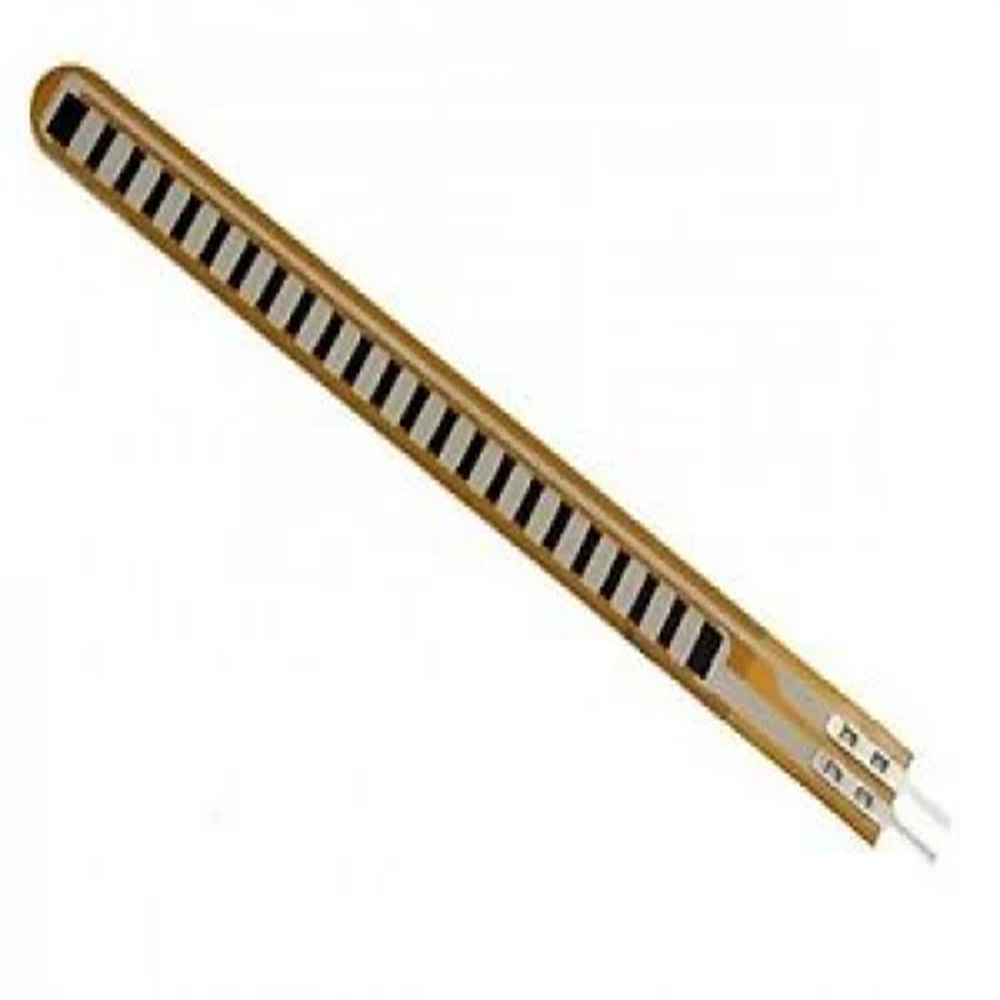

The 2.2″ Flex Sensor is a thin, flexible sensor that changes its resistance when bent. It is widely used in robotics, gaming, medical devices, and motion tracking applications. The sensor features a 0.1″ spaced connector, making it breadboard-compatible and easy to integrate into various projects.

Features

Bend-Activated Resistance – The resistance changes as the sensor bends
Compact & Durable – Over 1 million life cycles for long-lasting performance
Breadboard Compatible0.1″ spaced connector for easy wiring
Lightweight & Thin – Ideal for wearables, haptic feedback, and medical devices
Multiple Applications – Perfect for robotics, gaming, gesture control, and more

Applications

Angle Displacement Measurement – Detects bending angles accurately
Hand Gesture Recognition – Used in VR gloves, gaming controllers, and robotics
Medical Devices – Ideal for motion tracking in rehabilitation and therapy
Computer Peripherals – Enhances haptic feedback and wearable devices
Musical Instruments – Enables motion-based sound modulation
Physical Therapy – Assists in motion detection for rehabilitation exercises

Package Includes

1 x 2.2″ Flex Sensor – Bend Sensor

🔔 Note: To avoid damaging the sensor, do not bend the base. Only the sensing area should flex within its usable range. Firmly attach the base to ensure optimal performance and durability.
