MPU6050+ 3-axis Gyro + 3-axis Acceleration Sensor

About this item

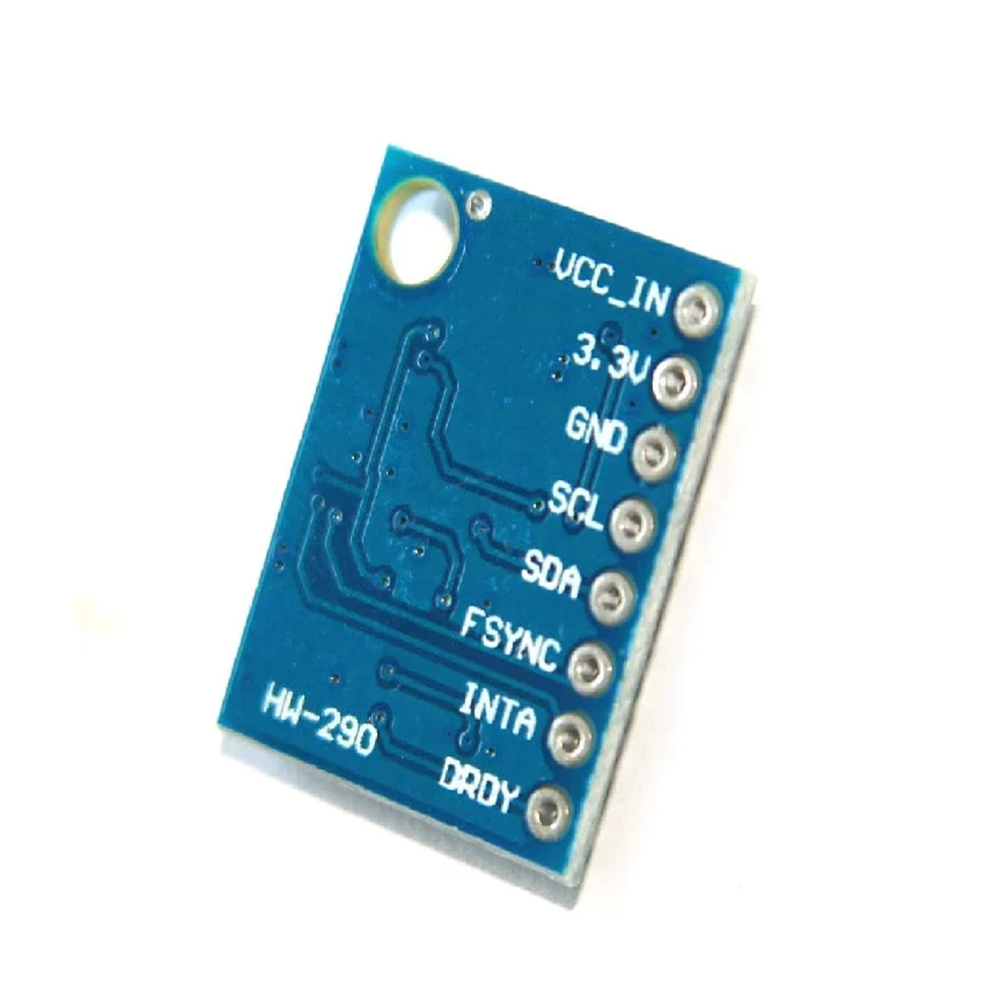

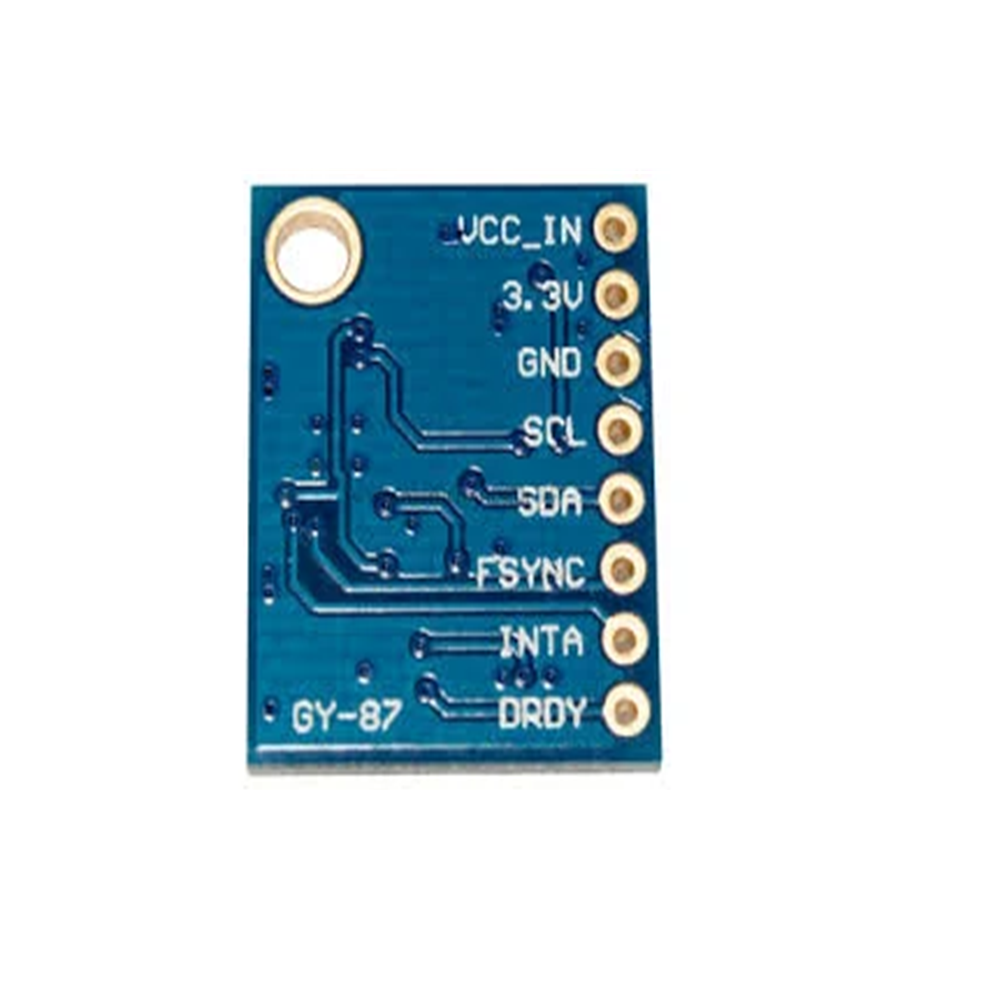

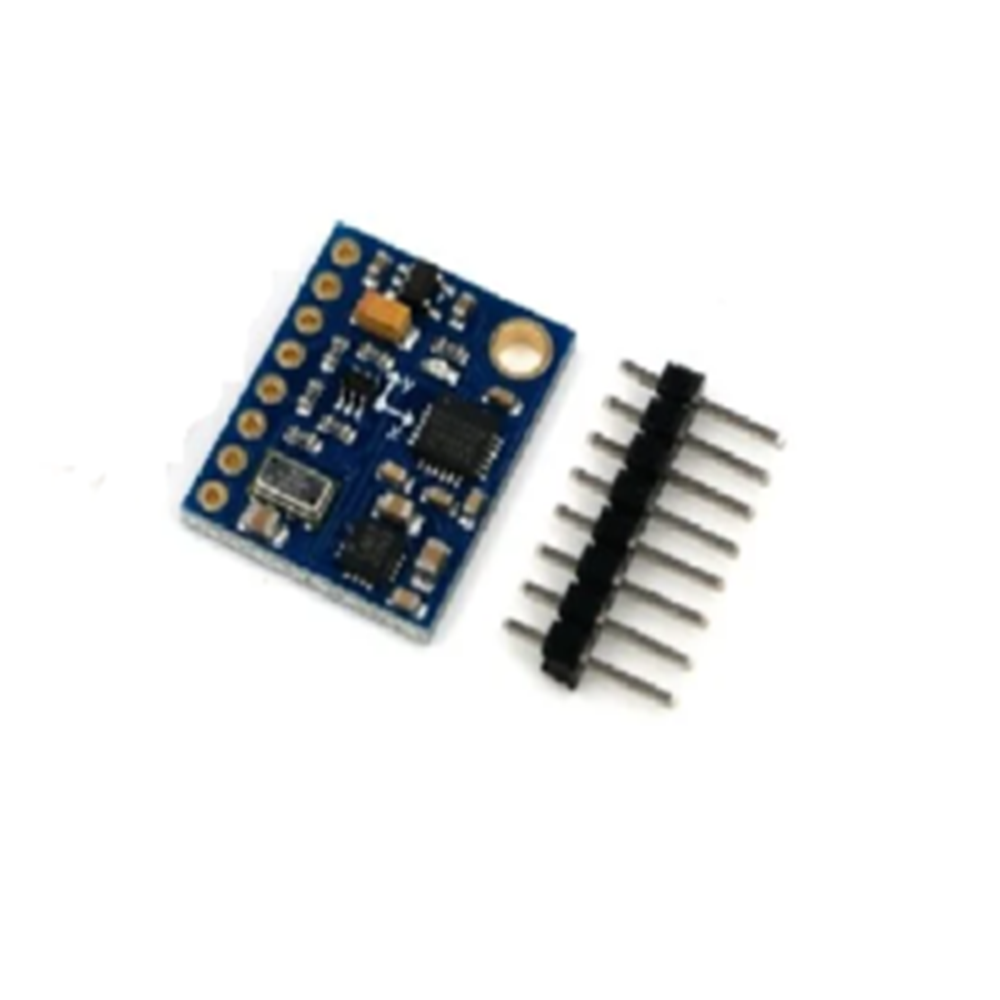

HW-290/GY-87 10DOF Sensor Module

The HW-290/GY-87 10DOF Sensor Module integrates three high-performance sensors to measure acceleration, angular velocity, magnetic field strength, and air pressure. This compact and versatile module is ideal for a wide range of applications, including robotics, navigation, and motion tracking systems.

Integrated Sensors:

1. MPU6050:
   • Measures 3-axis acceleration and 3-axis angular velocity.
   • Features an onboard Digital Motion Processor (DMP) for 9-axis MotionFusion.
   • User-programmable gyro ranges: ±250, ±500, ±1000, ±2000°/sec.
   • User-programmable accelerometer ranges: ±2g, ±4g, ±8g, ±16g.
   • Auxiliary I2C bus for external sensor integration.
2. HMC5883L:
   • Measures 3-axis magnetic field strength.
   • Provides high-resolution compass heading accuracy (1°–2°).
   • Ideal for applications such as compassing, navigation, and magnetometry.
3. BMP180:
   • Measures barometric pressure and temperature.
   • Functions as an altimeter by calculating altitude from pressure changes.
   • Fully compatible with BMP085 libraries for seamless integration.

Key Features:

• Ultra-Low Noise Regulator: Built-in LDO voltage regulator ensures stable power supply.
• Onboard Filters: Reduces interference from motors and high-current electronics.
• I2C Bus Connection: Connects all sensors to the I2C bus for streamlined communication.
• Address Selection: Easily configure two I2C addresses for the MPU6050 via solder jumpers.
• Power LED Indicator: Provides clear power status monitoring.
• Logic Level Conversion: Designed for compatibility with 5V logic systems.

Applications:

• FPV, RC, and robotic systems.
• GPS navigation and compassing.
• Impact recognition and logging.
• Gaming and virtual reality devices.
• Motion-activated functionalities.
• Intelligent power-saving systems.
• Vibration monitoring and compensation.
• Free-fall detection and orientation sensing.

Advantages of the Integrated Sensors:

• MPU6050: Tracks fast and slow motions with precision, simplifies motion-based applications, and integrates easily into compact systems.
• HMC5883L: Advanced magnetometer with accurate heading detection for mobile devices and navigation systems.
• BMP180: Low-cost solution for pressure, temperature, and altitude measurements, compatible with existing BMP085 setups.

The HW-290/GY-87 is a feature-packed, 10DOF sensor module designed to enhance the capabilities of your electronics projects with precision and reliability. Its compact design and robust performance make it suitable for various applications, from navigation systems to gaming and robotics.
