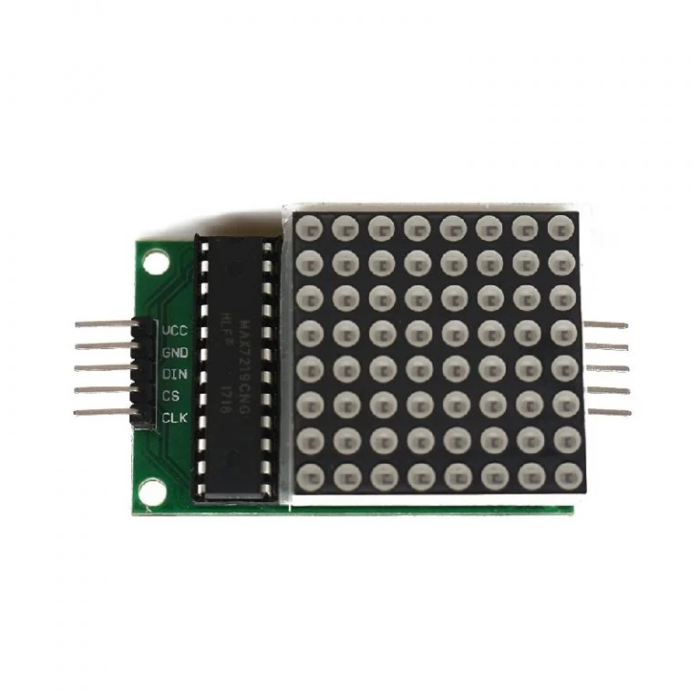

MAX7219 LED Dot Matrix

Key Features

1. Compact Design
   • Space-efficient, ideal for constrained project environments.
2. Ease of Communication
   • Requires only three communication wires from the MCU, simplifying connections.
3. Cascading Capability
   • Allows multiple modules to be connected, expanding design possibilities.
4. Integrated MAX7219 Driver Chip
   • Simplifies control of 64 individual LEDs or an 8-digit 7-segment display.
   • Includes built-in BCD encoder, scanning loop, and static RAM for data storage.
5. Convenient Mounting
   • PCB features M3 mounting holes for secure and straightforward installation.

Applications

• Dynamic LED animations
• Digital signage
• Bar graph displays
• DIY hobby projects
• Educational demonstrations

Pin Configuration

Advantages

• Efficiency: Requires only one external register for current control.
• Scalability: Connect multiple modules seamlessly for larger displays.
• Flexibility: Adaptable to various LED arrangements and use cases.

Conclusion

The MAX7219 Dot LED Matrix Module provides a robust and scalable solution for creating intricate LED displays. Its compact size, ease of use, and reliable performance make it an excellent choice for hobbyists, educators, and professionals alike. With this module, your projects will stand out with captivating visual effects and efficient operation.
