Raindrops Detection Sensor Module

Raindrops Detection Sensor Module

The Raindrops Detection Sensor Module is an ideal solution for monitoring rainfall intensity and weather conditions. This versatile module is compatible with Arduino and other microcontroller platforms, offering both digital and analog output signals for diverse applications.

Product Overview

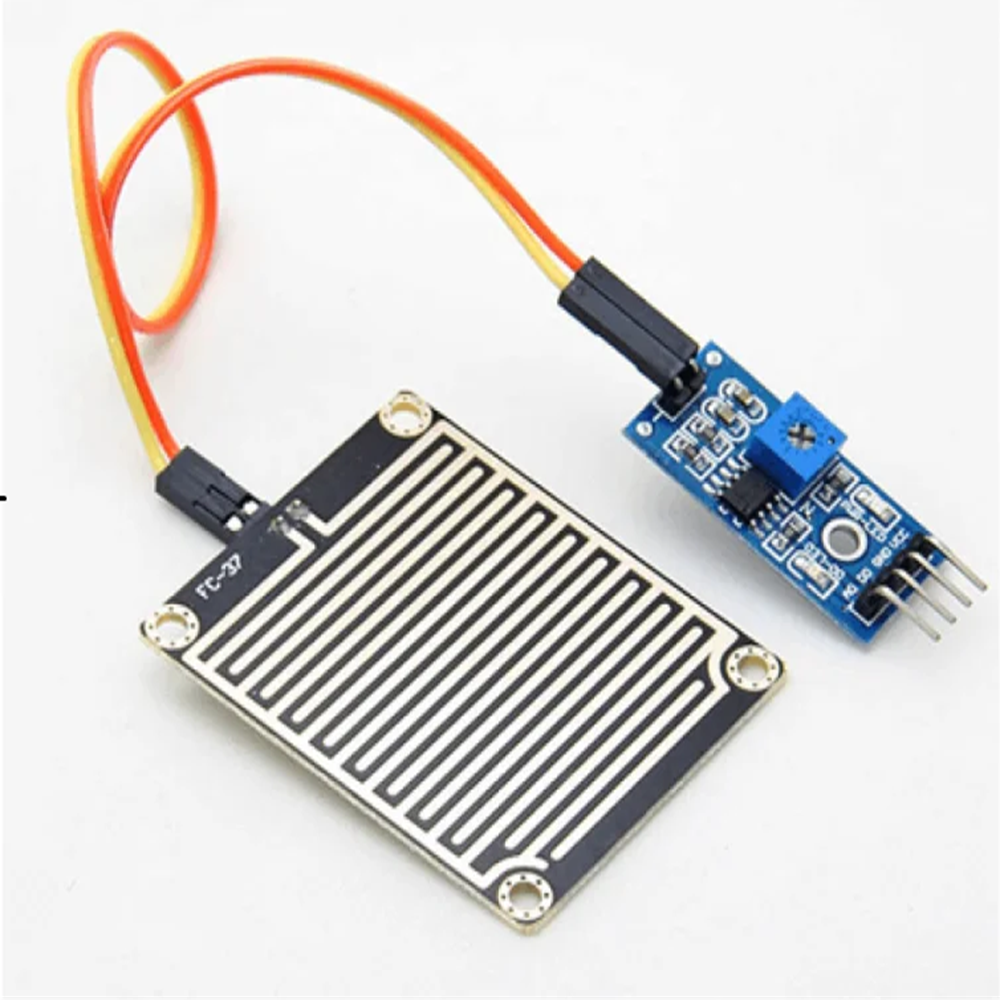

This module consists of two components:

1. Rain Board: Detects raindrops by capturing water on its surface, with resistance decreasing as water accumulates.
2. Control Board: Equipped with an LM393 comparator, it processes the rain board’s resistance changes into measurable output voltages.

The module features an adjustable potentiometer for sensitivity customization and an LED indicator for power status. With its durable design and precise measurements, it’s suitable for applications such as agriculture, weather forecasting, and DIY projects.

Key Features:

• Wide Voltage Range: Operates on 3.3V to 5V DC, ensuring compatibility with various systems.
• Dual Outputs: Provides both digital (0 and 1) and analog (AO voltage) outputs for enhanced functionality.
• High-Quality Design: The rain board is constructed from FR-04 double-sided material with a nickel-plated surface, ensuring excellent conductivity, oxidation resistance, and longevity.
• Adjustable Sensitivity: A potentiometer allows fine-tuning of detection sensitivity.
• Robust Comparator: Utilizes the LM393 op-amp for stable and reliable performance.
• Easy Installation: Includes fixed bolt holes for convenient mounting.
• LED Indicator: Visual feedback for power status.

Specifications:

Applications:

• Agriculture: Monitor rainfall for irrigation and crop management.
• Weather Stations: Track rainfall intensity for forecasting.
• Home Automation: Integrate with systems to automate tasks based on weather conditions.
• DIY Projects: Create innovative applications requiring rain detection.

The Raindrops Detection Sensor Module delivers precision and adaptability, making it a valuable addition to your electronics toolkit.
