Raspberry Pi Pico W

Raspberry Pi Pico W

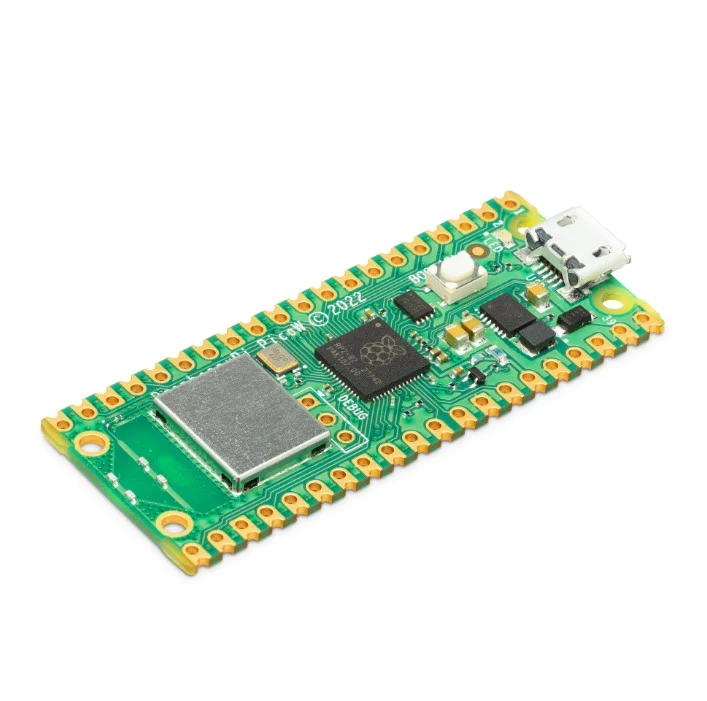

The Raspberry Pi Pico W is a versatile and cost-effective microcontroller board with built-in 2.4GHz wireless LAN support, making it ideal for IoT applications and wireless communication projects. It retains the same form factor as the original Raspberry Pi Pico, ensuring compatibility and ease of use while introducing robust wireless capabilities.

At its core is the RP2040 microcontroller, designed by Raspberry Pi, featuring dual ARM Cortex-M0+ cores running at up to 133MHz, 264KB of SRAM, and 2MB of onboard QSPI Flash memory. The addition of the Infineon CYW43439 wireless chip brings IEEE 802.11 b/g/n Wi-Fi support, making it a comprehensive solution for embedded and IoT projects.

Features:

• Powerful Microcontroller: RP2040 with dual-core Cortex-M0+ and up to 133MHz clock speed.
• Onboard Wireless: Single-band 2.4GHz 802.11n wireless LAN interface for seamless connectivity.
• Flexible GPIO: Exposes 26 multi-function GPIO pins (23 digital-only, 3 ADC capable).
• Compact Design:
  • 40-pin DIP-style PCB measuring 21mm x 51mm.
  • 0.1″ through-hole pins with edge castellations.
  • Can be surface-mounted as a module.
• Comprehensive Connectivity:
  • Micro USB B port for power, data, and flash programming.
  • 3-pin ARM Serial Wire Debug (SWD) port for advanced debugging.
• Power Options: Supports micro USB, external supplies, or batteries.
• Memory:
  • 2MB of onboard flash for code and data storage.
  • 264KB high-performance SRAM with multi-bank architecture.
• High-Quality Build: Reliable and durable with low cost and high availability.
• Developer Resources: Includes a comprehensive SDK, software examples, and detailed documentation.

Applications:

• Internet of Things (IoT) devices and applications.
• Wireless communication systems.
• Embedded systems and automation projects.
• Prototyping and educational projects in electronics and programming.

The Raspberry Pi Pico W combines power, versatility, and affordability, making it an excellent choice for developers and hobbyists looking to integrate wireless connectivity into their projects.
