Showing all 8 results

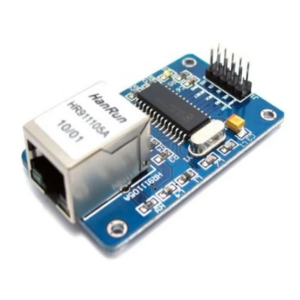

  • ENC28J60 Ethernet Module (10 Pin Package: SSOP)

    0 out of 5
    ₹350 +Tax and Shipping.

    Specifications

    Parameter Value
    Ethernet Standard 10Base-T
    Communication Interface SPI (Serial Peripheral Interface)
    Max SPI Clock Speed 20MHz
    Crystal Oscillator 25MHz
    Ethernet Port HanRun HR911105A
    Supply Voltage 3.3V (5V-tolerant inputs)
    Operating Current ~180mA
    Board Dimensions 57mm × 34mm × 16mm
    Weight 14g
    Add to cartDone

  • HC-05 6pin Bluetooth Module with Button

    5.00 out of 5
    ₹280 +Tax and Shipping.

    Specifications:

    • Operating Voltage: DC 3.3V
    • Operating Current: 13-26mA
    • Idle Current: 10-13mA
    • Sleep Current: <80uA
    • Peak Current: <30mA
    • Frequency: 13.56MHz
    • Supported Card Types: MIFARE S50, S70, Ultralight, Pro, DESFire
    • Reader Distance: ≥50mm (with MIFARE 1 cards)
    • Data Transfer Rate: Up to 10Mbit/s
    • Operating Temperature: -20°C to 80°C
    • Storage Temperature: -40°C to 85°C
    • Humidity Range: 5% to 95% relative humidity
    • Module Dimensions: 40mm x 60mm
    Add to cartDone

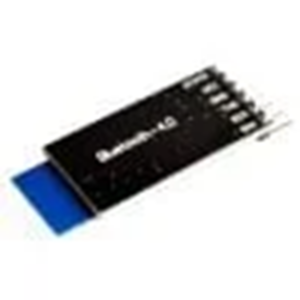

  • HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module

    0 out of 5
    ₹420 +Tax and Shipping.

    📌 Pin Description

    🔹 VCC – Power input (3.3V–5V)
    🔹 GND – Ground
    🔹 TXD – UART Transmit
    🔹 RXD – UART Receive
    🔹 STATE – Internal LED status pin (optional)
    🔹 BRK – Disconnect Bluetooth connection (optional)

    Add to cartDone

  • PT2272 – 4-Channel RF Remote Control – Transmitter Receiver Pair (Momentary)

    0 out of 5
    ₹200 +Tax and Shipping.

    The PT2272 4-Channel RF Remote Control is a wireless transmitter-receiver pair designed for remote-controlled applications such as toy cars, home automation, and short-distance wireless switching. Operating at +5V DC, it provides momentary operation, meaning that the output remains active only while the corresponding button is pressed. This RF module offers a 100-meter range in open…

    Add to cartDone

  • RFID 13.56MHz Card (Pack of 2)

    0 out of 5
    ₹45 +Tax and Shipping.

    Specifications:

    🔹 Type: RFID Contactless Smart Card
    🔹 Chip Type: MIFARE 1K (or similar)
    🔹 Operating Frequency: 13.56MHz
    🔹 Protocol: ISO 14443A
    🔹 Storage Capacity: 1KB EEPROM
    🔹 Reading Distance: Up to 10cm (varies by reader)
    🔹 Material: PVC plastic
    🔹 Dimensions: 85.6 x 54 mm (Standard Credit Card Size)
    🔹 Color: White
    🔹 Weight: Approx. 6g per card

    Add to cartDone

  • RFID Reader/Writer RC522 SPI S50 with RFID Card and Tag

    4.00 out of 5
    ₹105 +Tax and Shipping.

    Specifications:

    • Integrated RC522 IC
    • 13.56MHz Contactless Communication
    • Low Power Consumption
    • High-Speed Communication
    • SPI Interface
    • Compact and Lightweight
    Add to cartDone

  • RFID Reader/Writer RC522 SPI S50 with RFID Card and Tag

    0 out of 5
    ₹150 +Tax and Shipping.

    Specifications:

    🔹 Operating Voltage: 3.3V DC (5V tolerant with level shifters)
    🔹 Current Consumption: 13-26mA
    🔹 Frequency: 13.56 MHz
    🔹 Interface: SPI (default), I2C, UART
    🔹 Data Transfer Rate: 10 Mbps
    🔹 Reading Distance: Up to 5 cm
    🔹 Card Types Supported: MIFARE 1K, MIFARE 4K, Ultralight, DESFire, Plus
    🔹 Operating Temperature: -20°C to +80°C
    🔹 Dimensions: 60mm x 39mm

    Add to cartDone

  • RS232 to TTL Serial Port Converter DB9 MAX3232 Module

    0 out of 5
    ₹60 +Tax and Shipping.

    📌 Specifications

    🔹 Chipset: MAX3232
    🔹 Operating Voltage: 3.3V – 5V DC
    🔹 Baud Rate: Up to 120kbps
    🔹 Communication Interface: RS232 (DB9) to TTL
    🔹 DB9 Connector Type: Male
    🔹 Logic Level: TTL (0V – 5V)
    🔹 Operating Temperature: -40°C to 85°C
    🔹 Module Dimensions: Compact and lightweight

    Add to cartDone
