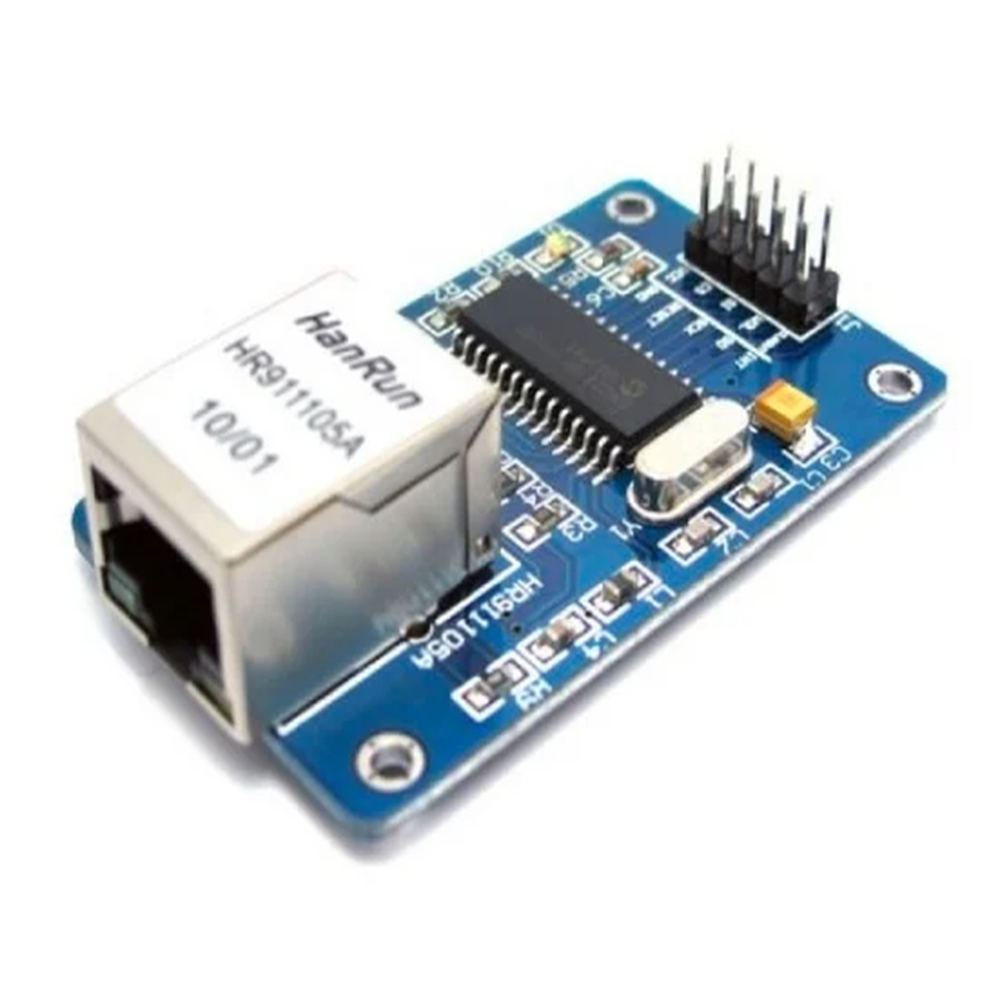

ENC28J60 Ethernet Module (10 Pin Package: SSOP)

ENC28J60 Ethernet Module – SPI Interface for Arduino & Microcontrollers

The ENC28J60 Ethernet Module is a compact, high-performance Ethernet interface designed for microcontroller-based projects, including Arduino, AVR, PIC, STM32, and LPC. This module is powered by the Microchip ENC28J60 Ethernet Controller IC, which converts Ethernet signals into SPI data, enabling reliable wired network connectivity for embedded systems.

With support for 10Base-T Ethernet, SPI clock speeds up to 20MHz, and built-in MAC & PHY layers, the ENC28J60 module provides a stable and efficient networking solution. Whether you’re working on IoT, automation, or industrial applications, this Ethernet module ensures secure, fast, and reliable communication.

Features

✔ 10Base-T Ethernet Support – Works seamlessly with 10/100/1000Base-T networks
✔ Integrated MAC & PHY Controller – Reduces the need for external networking components
✔ SPI Communication – Enables fast data transfer with clock speeds up to 20MHz
✔ Automatic Polarity Detection & Correction – Ensures stable connectivity
✔ Supports Full & Half-Duplex Modes – Efficiently handles high-speed data transmission
✔ Programmable CRC & Padding – Minimizes errors for accurate data integrity
✔ Automatic Retransmission on Collision – Improves network stability
✔ Compact & Lightweight – Small 57mm × 34mm form factor for easy integration

Applications

✔ Internet of Things (IoT) Projects – Add Ethernet connectivity to microcontroller-based smart devices
✔ Home Automation & Industrial Control – Remote control and data logging over a wired network
✔ Embedded Web Servers – Host simple web pages for device monitoring & control
✔ Networked Sensor Systems – Enable real-time data collection via Ethernet
✔ Security & Surveillance – Integrate with networked cameras and access control systems
✔ Educational & Research Projects – Learn networking fundamentals with embedded systems

Package Includes

✔ 1 x ENC28J60 Ethernet Module (10-Pin SSOP Package)

This module is perfect for projects that require a stable and secure wired network connection, offering faster speeds, minimal interference, and reliable data transmission compared to wireless alternatives.
